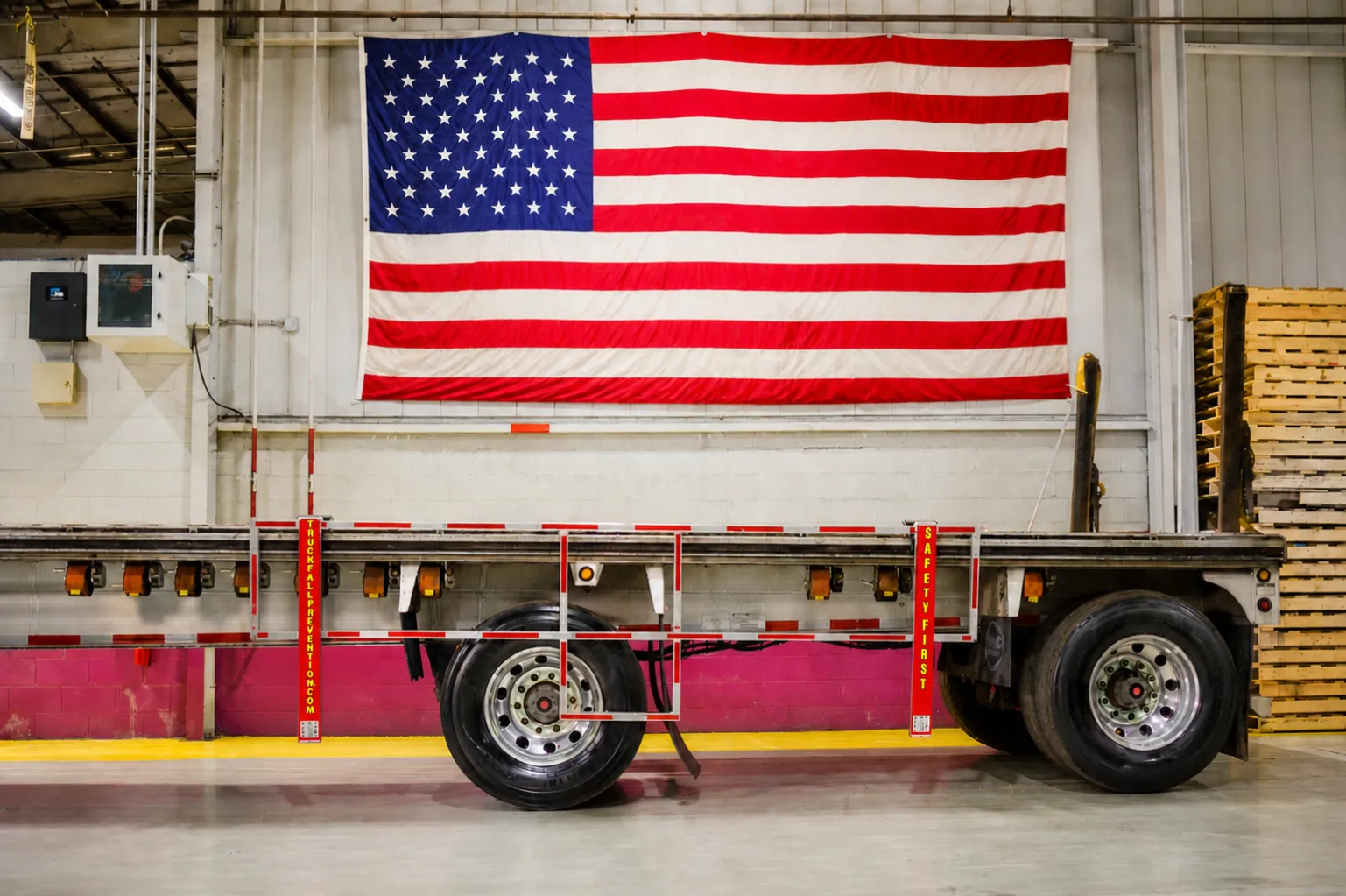

Slide Down System
The Slide Down System is an aluminum trailer-mounted barrier built for slide down flatbed truck fall protection in loading areas with tight space conditions, ie when there is no room for a fold down gate. The protective barrier stays upright and locked in place while providing the safety barrier, then slides down on a guided track when trailer access is needed for side loading or unloading. For fleets seeking dependable fall protection for truck drivers in constrained environments, this system offers a practical alternative.Request a Quote
How it works & Key Benefits
How Slide Down Systems Work

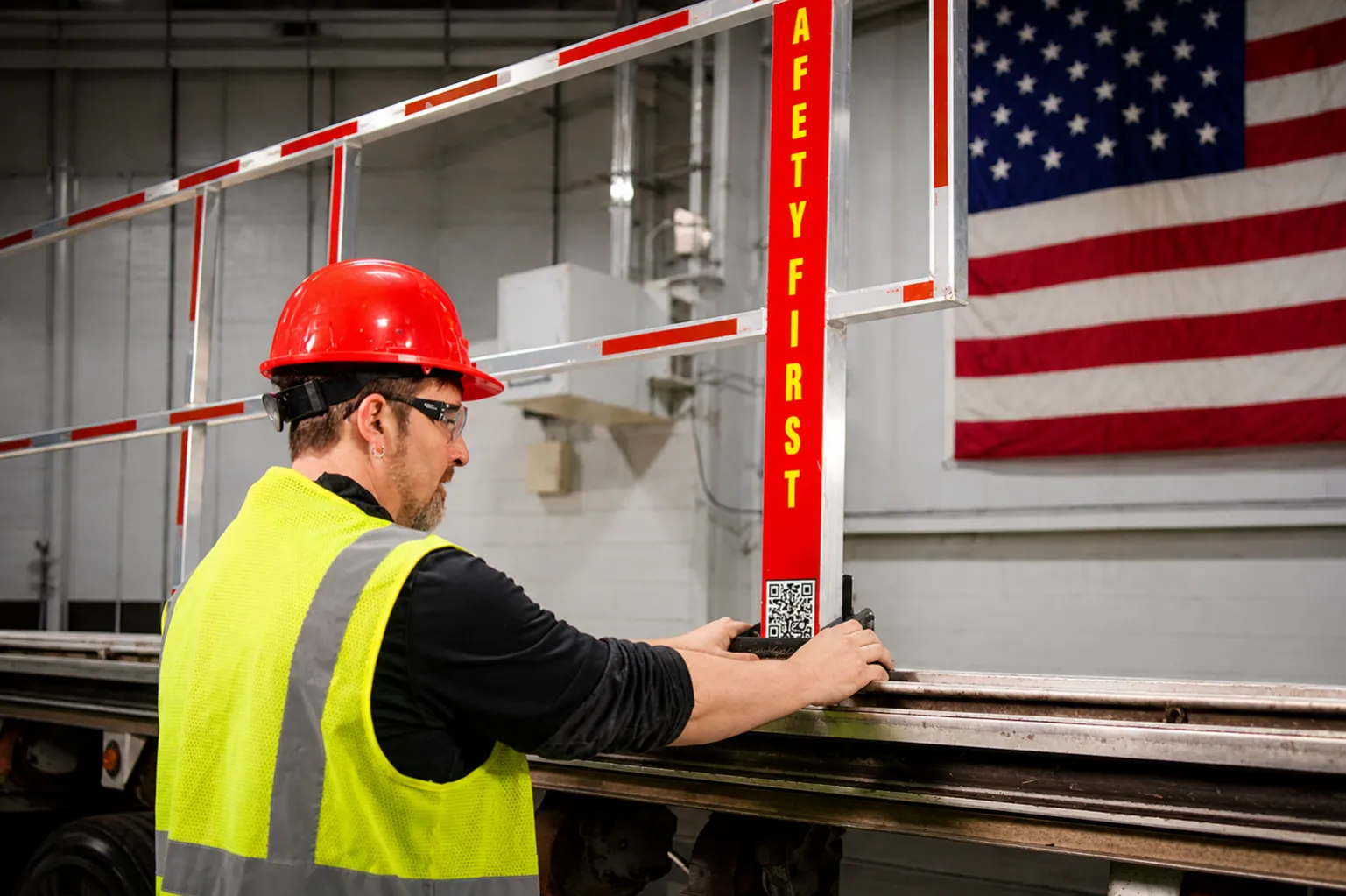

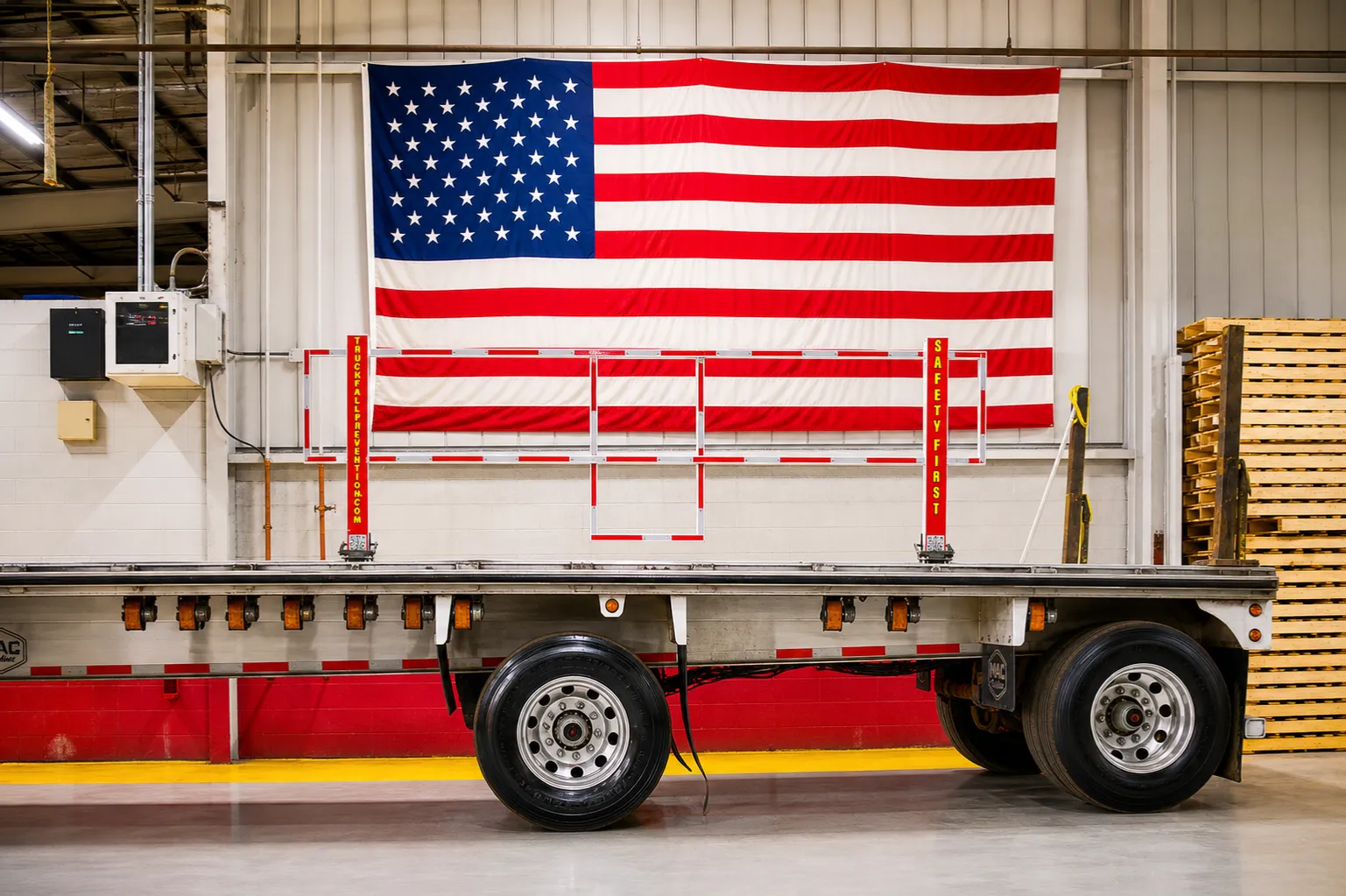

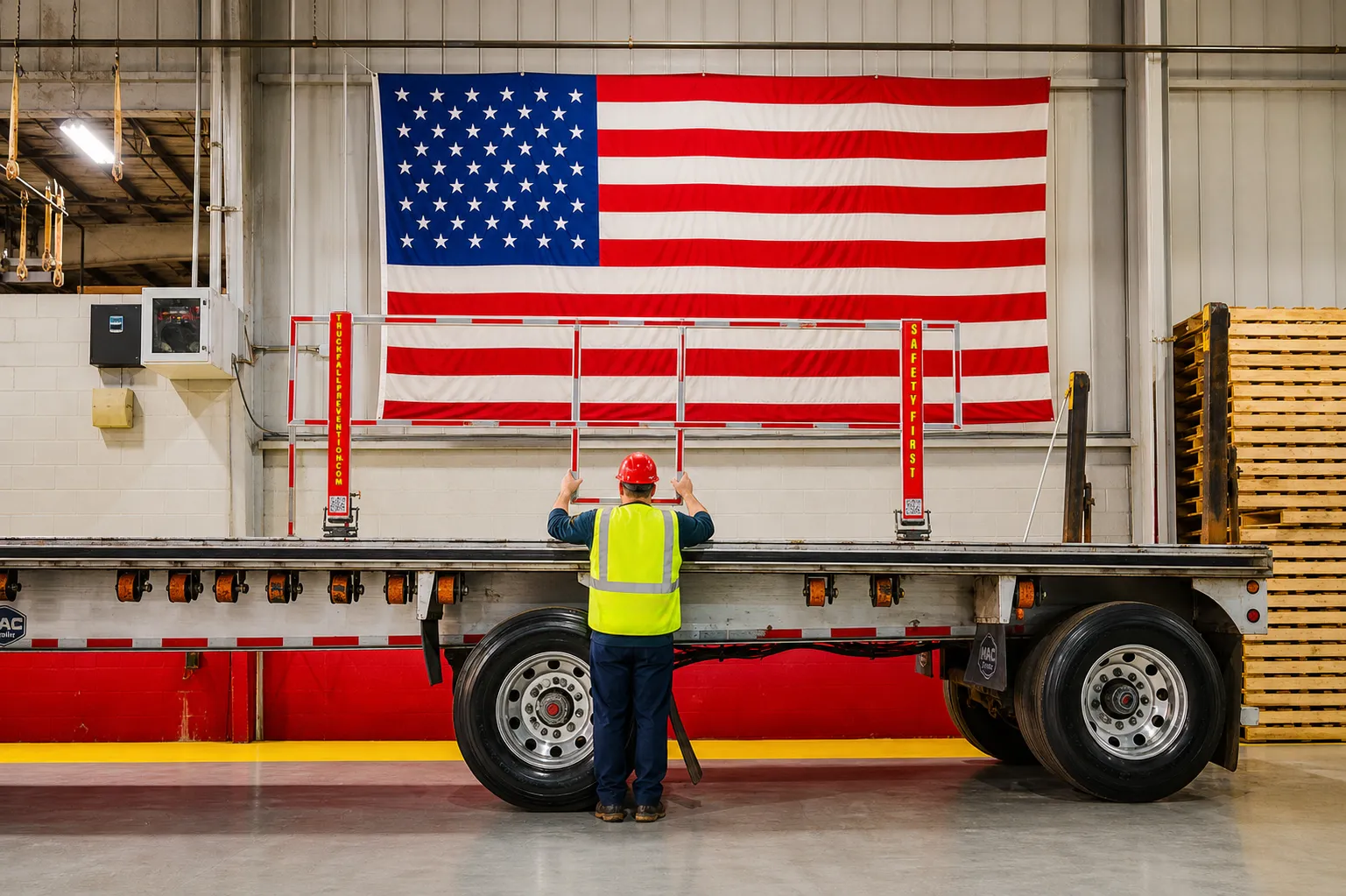

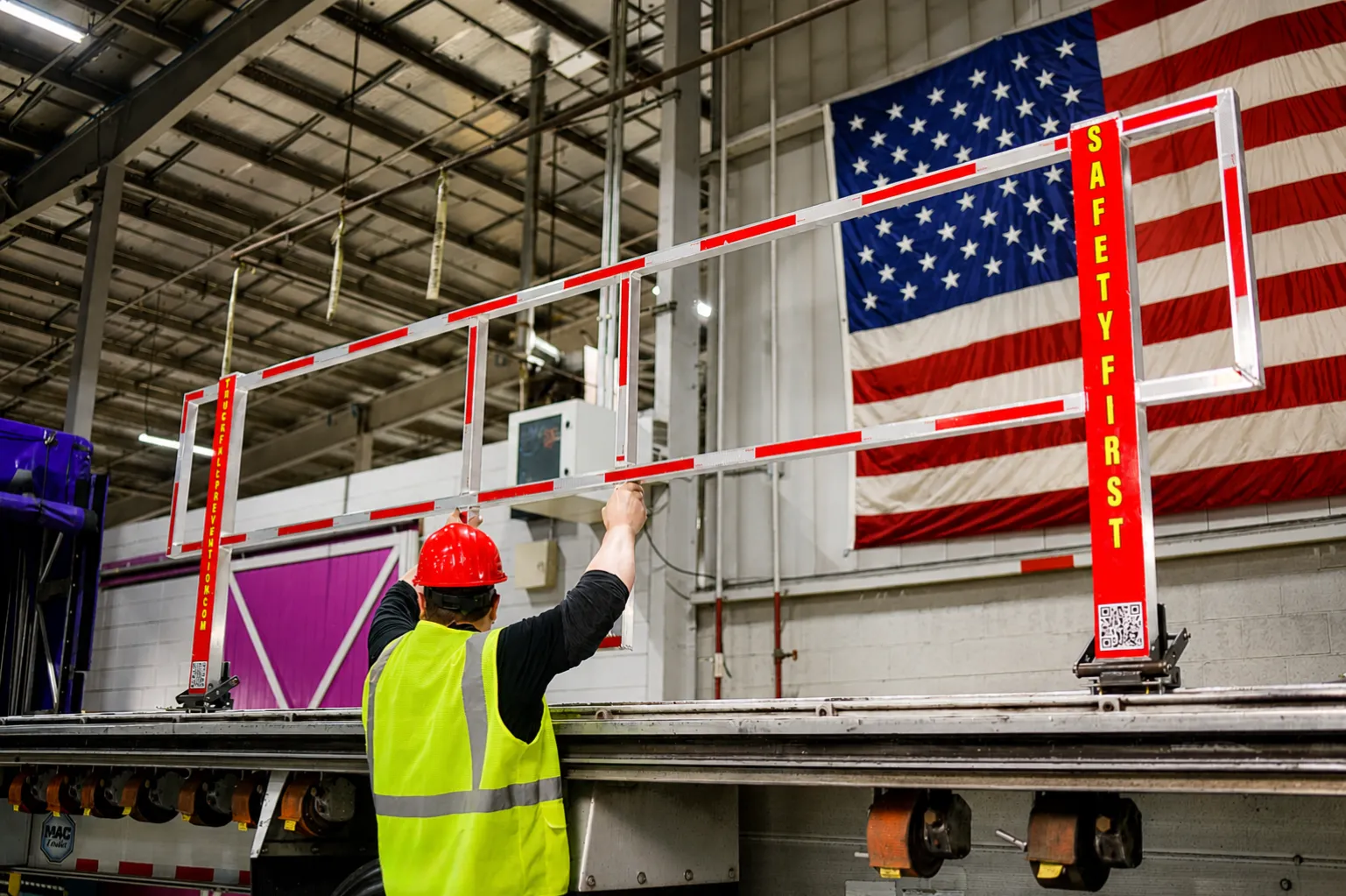

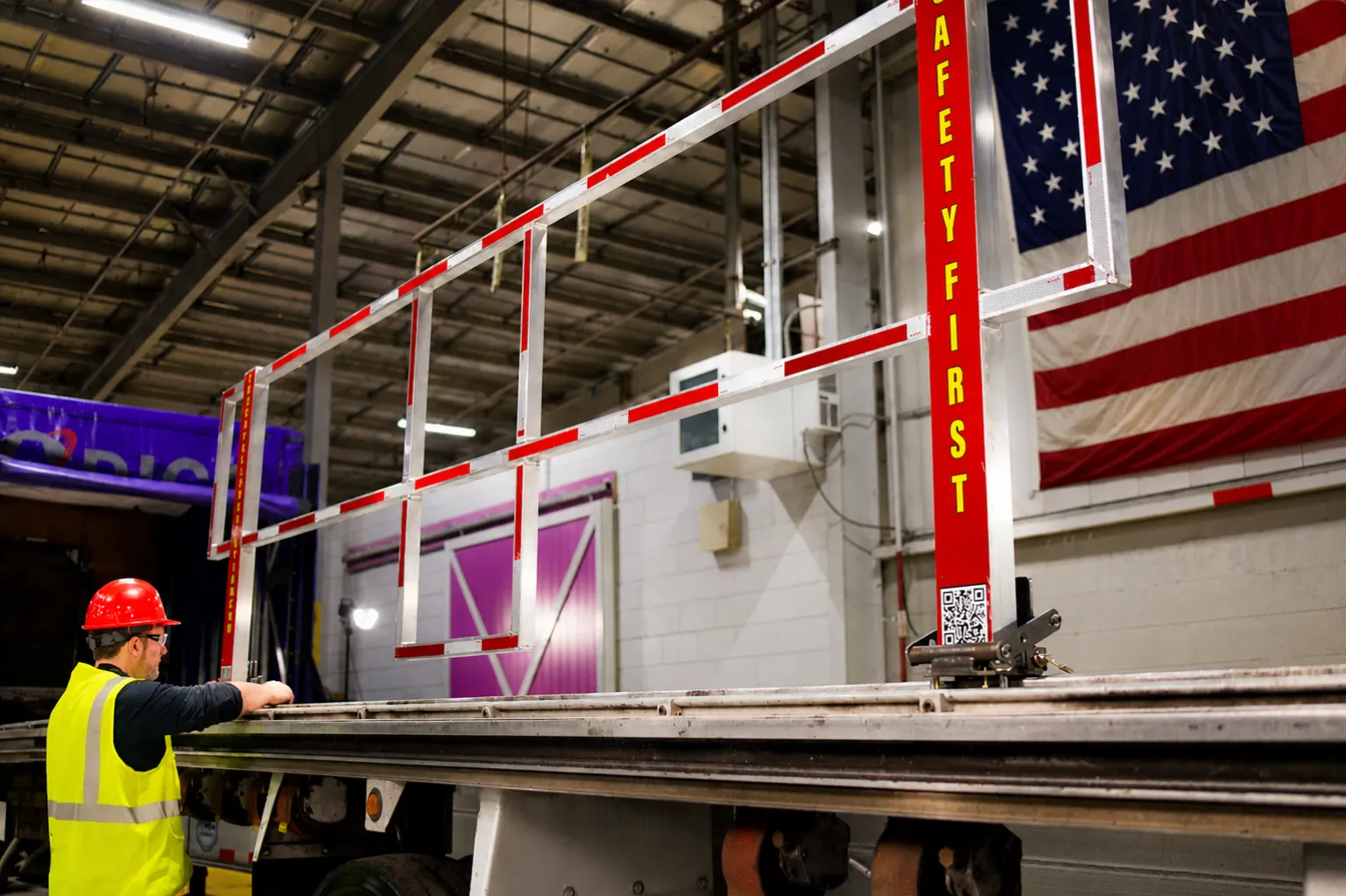

The Slide Down System creates a physical barrier along the trailer edge while work is being performed. When in protection mode, it remains upright and locked in place on the trailer.

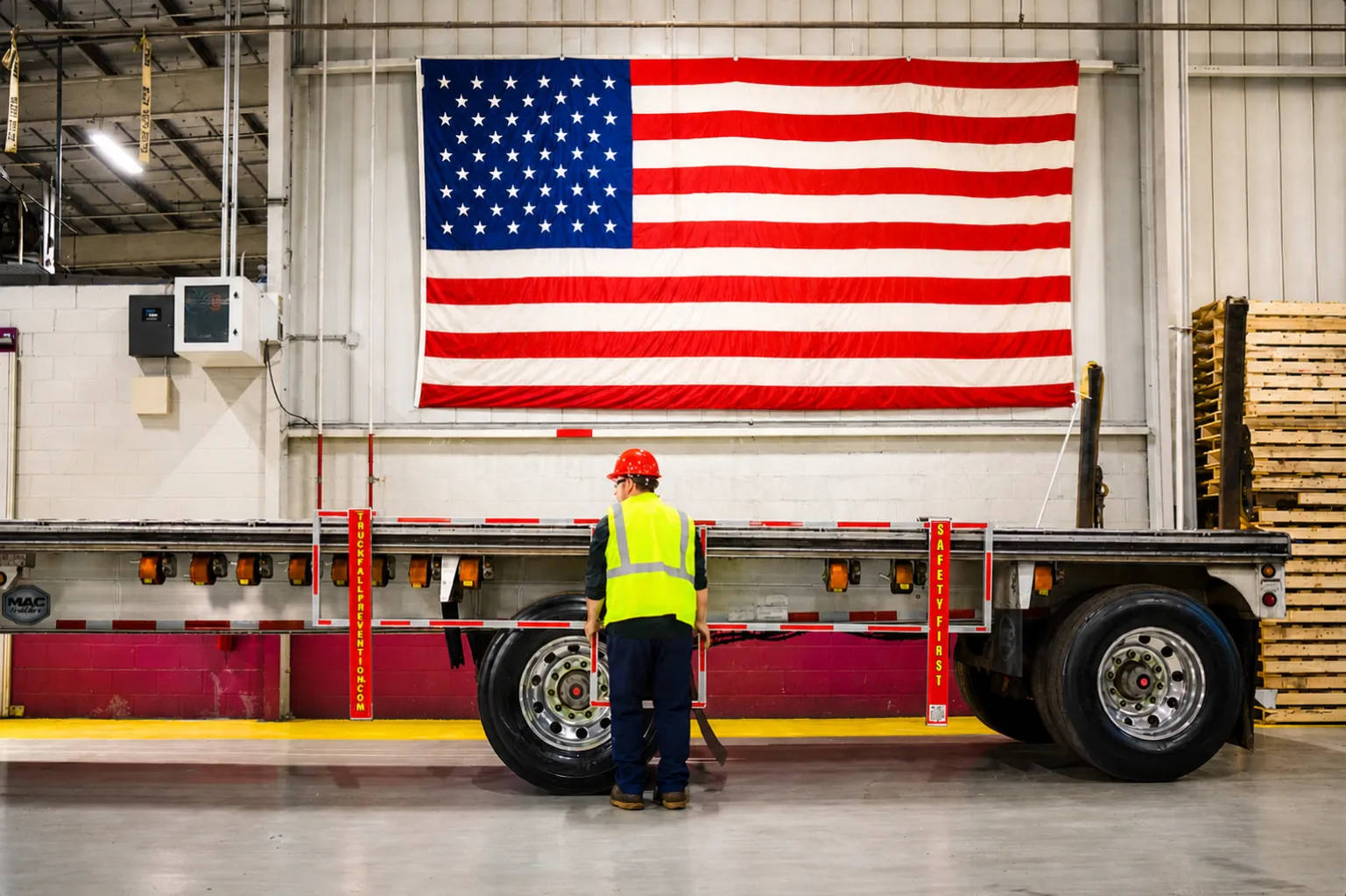

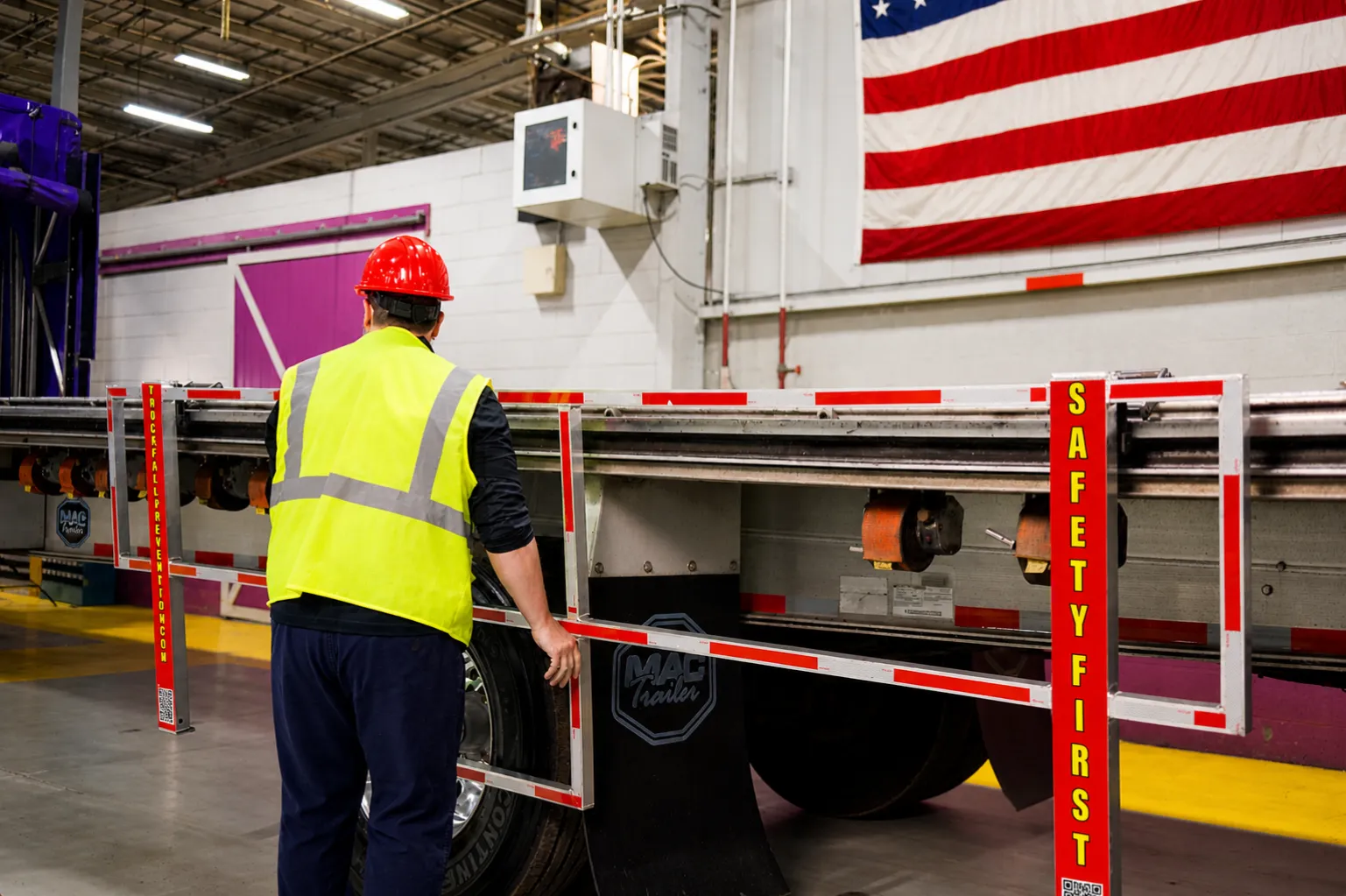

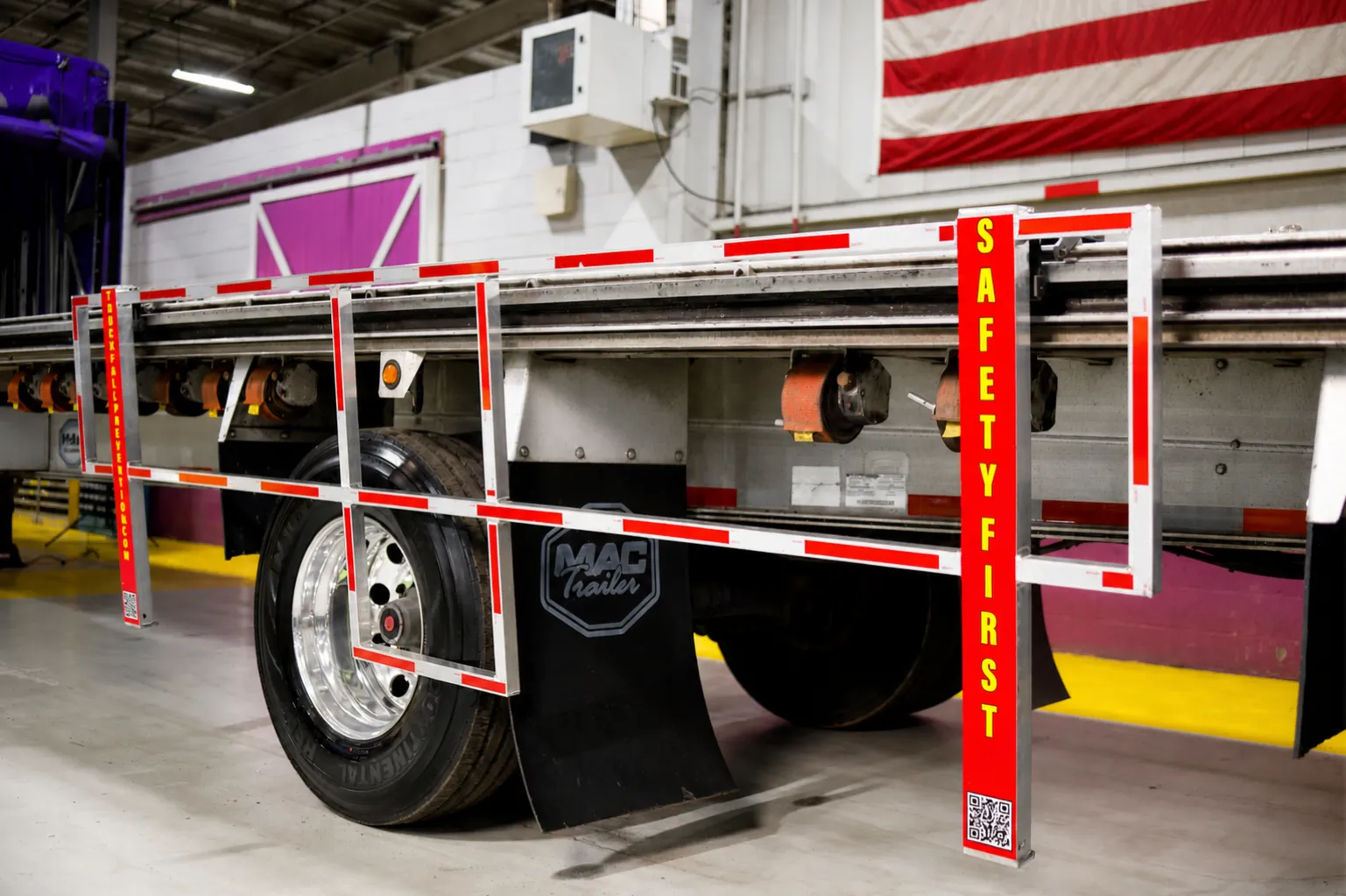

When workers need access, the protective gate slides down below the trailer bed using a track-guided motion rather than dropping freely into open space. This is especially useful where walls, structures, or other obstructions limit how a fold down gate can move in the loading area.
Designed for Space-Limited Loading Areas
This aluminum system is especially useful in facilities where there is not enough room for a barrier to fold or drop freely.Standard and Flexible Configuration Options
This aluminum system can be configured to match different trailer layouts and operating needs, including:Available in 2-sided, 3-sided, and 4-sided options
42” top rail, 21” middle rail standard
Customizable heights
Standard 10’ distance between uprights – total gate is 12’
Customizable distance between uprights available
Quick-release pins to secure to deck for DOT compliance
Protects both sides of a full-length 48’ or 53’ flatbed trailer
Flexible to protect shorter flatbeds, such as 20’, 24’, or 28’ beds
Compatible with Conestogas
Separate systems to protect the front and rear trailer available
3-sided and 4-sided systems are also available
Key Benefits
Stays on truck for loading and unloading
Provides slide down flatbed truck fall protection where space is limited
Supports more usable fall protection for truck drivers in tight loading zones
Stays upright and locked while acting as the safety barrier
Uses a guided track to slide down in a controlled way
Aluminum construction supports durability and easier handling
Helps make fall protection more workable near walls and structures
Light weight and easy to use
Ideal Applications
Loading areas with walls close to the trailer
Indoor bays with limited clearance
Industrial sites with structural obstructions
Standard flatbeds and Conestoga-compatible operations
Fleets needing a trailer-mounted barrier with guided movement
Problem
Some flatbed fall protection systems need open surrounding space to move properly. In real loading environments, that space is not always available. Walls, adjacent equipment, and building layouts can make standard free-moving systems hard to use.Solution
The Slide Down System solves that problem by guiding the safety gate barrier down along a track rather than requiring open swing or free-drop movement. That makes it a more practical aluminum solution for operations that still need strong edge protection but work in tighter loading environments.How we stand out

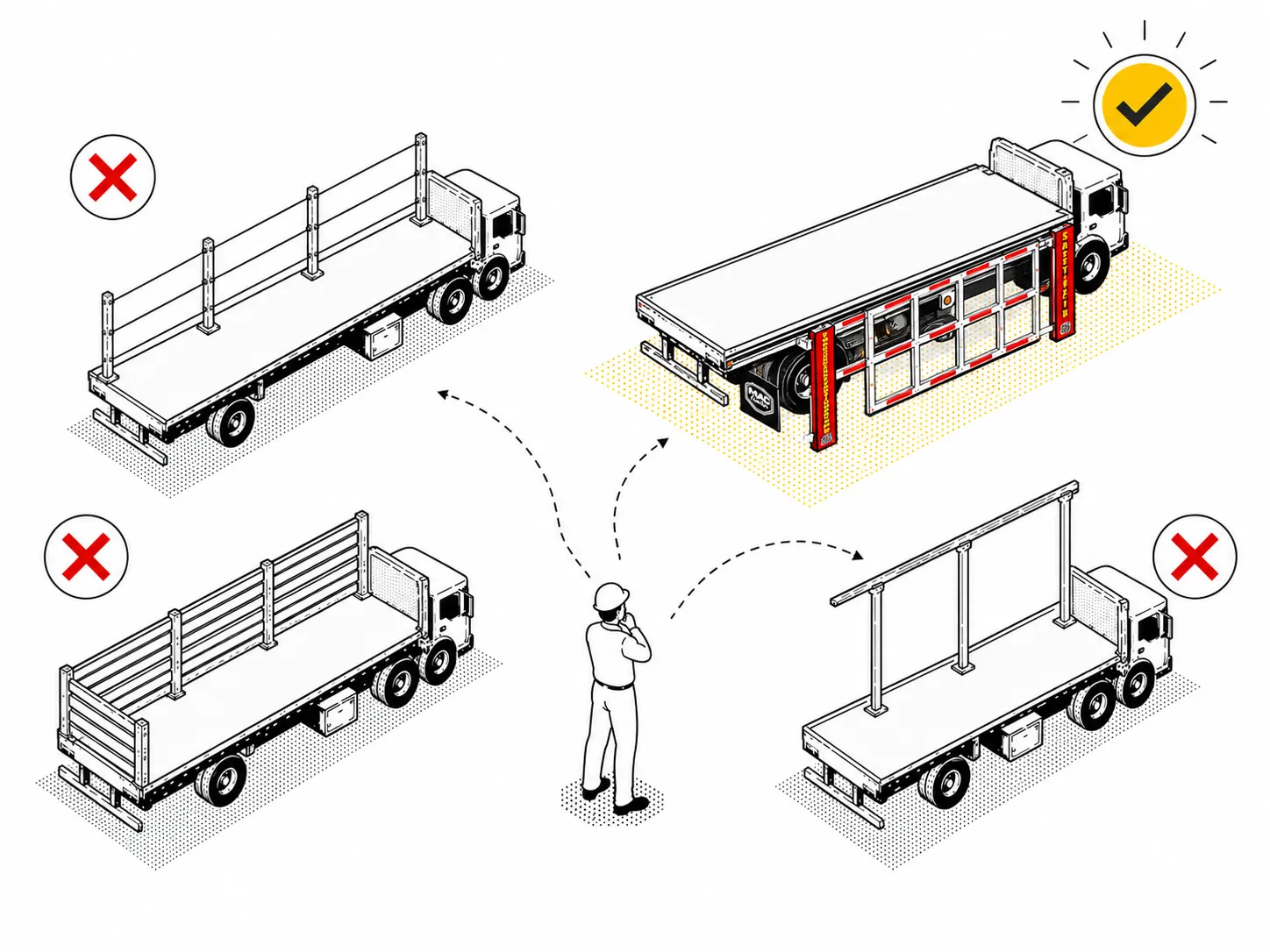

Comparison vs. Alternatives
No comparable slide-down on-truck system exists for fleet applications. This system was engineered specifically for that use case.
Common Questions
Quote
Request a Quote for the Drop-In System
Whether your facility loads flatbeds, stake trailers, step decks, or Conestogas, Truck Fall Prevention can help you determine whether the Drop-In System is the right fit for your operation.
